NetGain Micro 880™ Motor
Choose options
Description:

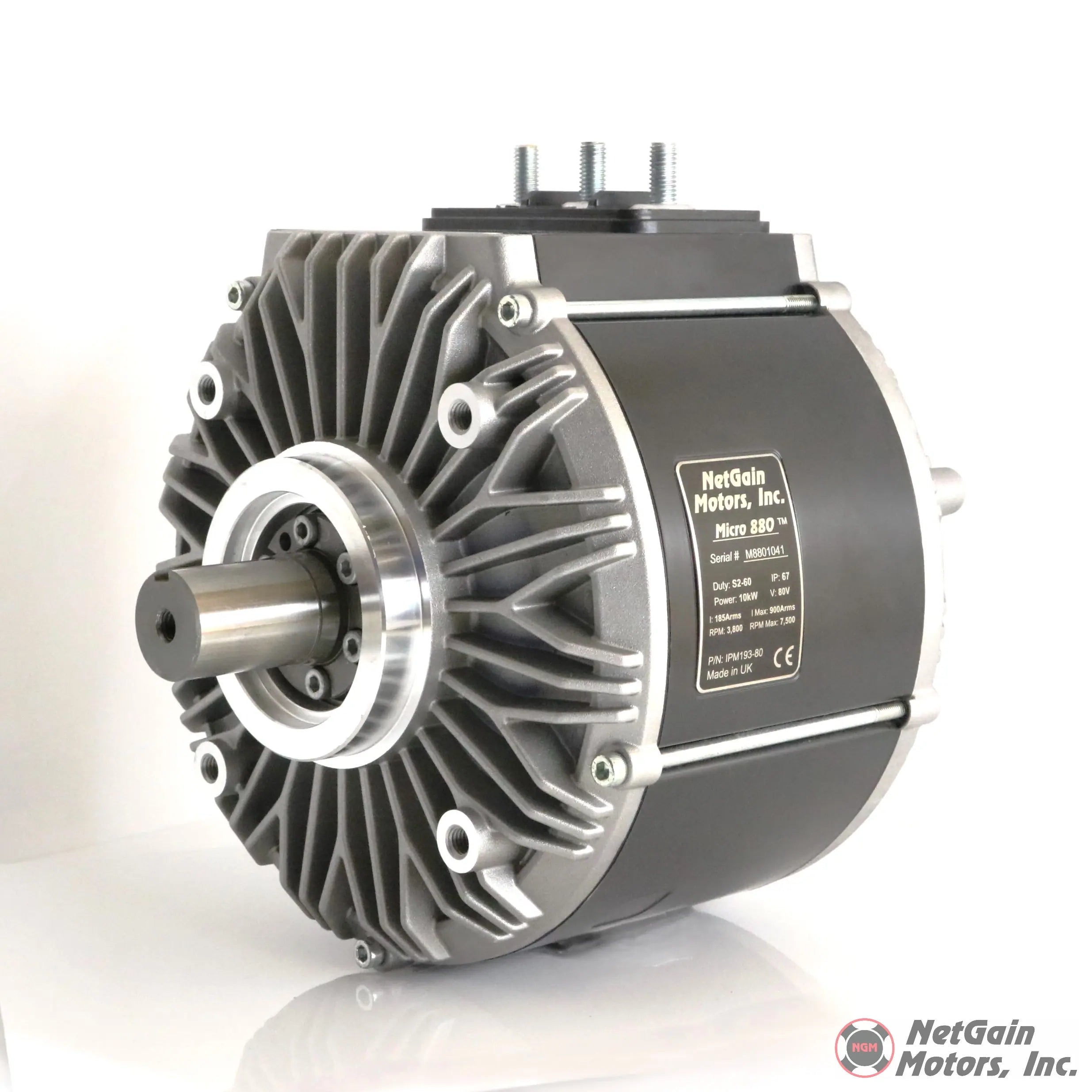

NetGain Micro 880 Motor
Compact Powerhouse for Custom Electric Vehicle Builds
In Stock Now at EV Source – Ships Fast Across the U.S.
Product Overview
The NetGain Micro 880 is a compact, high-torque EV motor engineered for performance in tight spaces. Whether you're building an electric motorcycle, light utility vehicle, or custom EV conversion, this brushless AC motor delivers smooth, efficient power where space and weight matter most.
Built on NetGain's industry-leading technology, the Micro 880 offers high performance at lower voltages—ideal for builds running 48V to 144V systems.

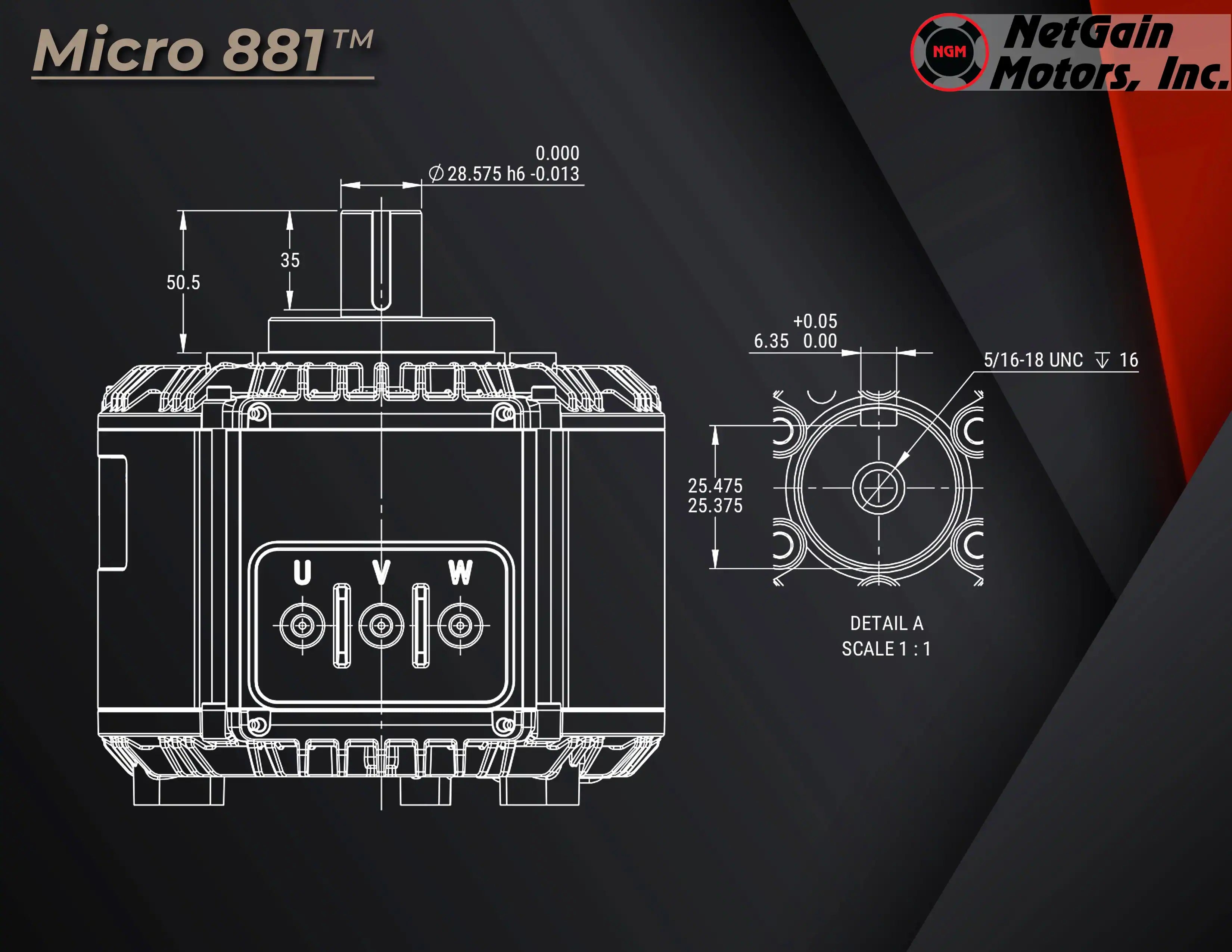

| Micro 881 | IPM Single Shaft Motor - 1.125" keyed Drive End Shaft, .250" Keyway 10kW continuous. Wound for optimal performance with 80V input. |
| Micro 882 |
IPM Single Shaft Motor - 24mm keyed Drive End Shaft, 8mm keyway, 10kW continuous. Wound for optimal performance with 80V input. |
| Micro 883 |

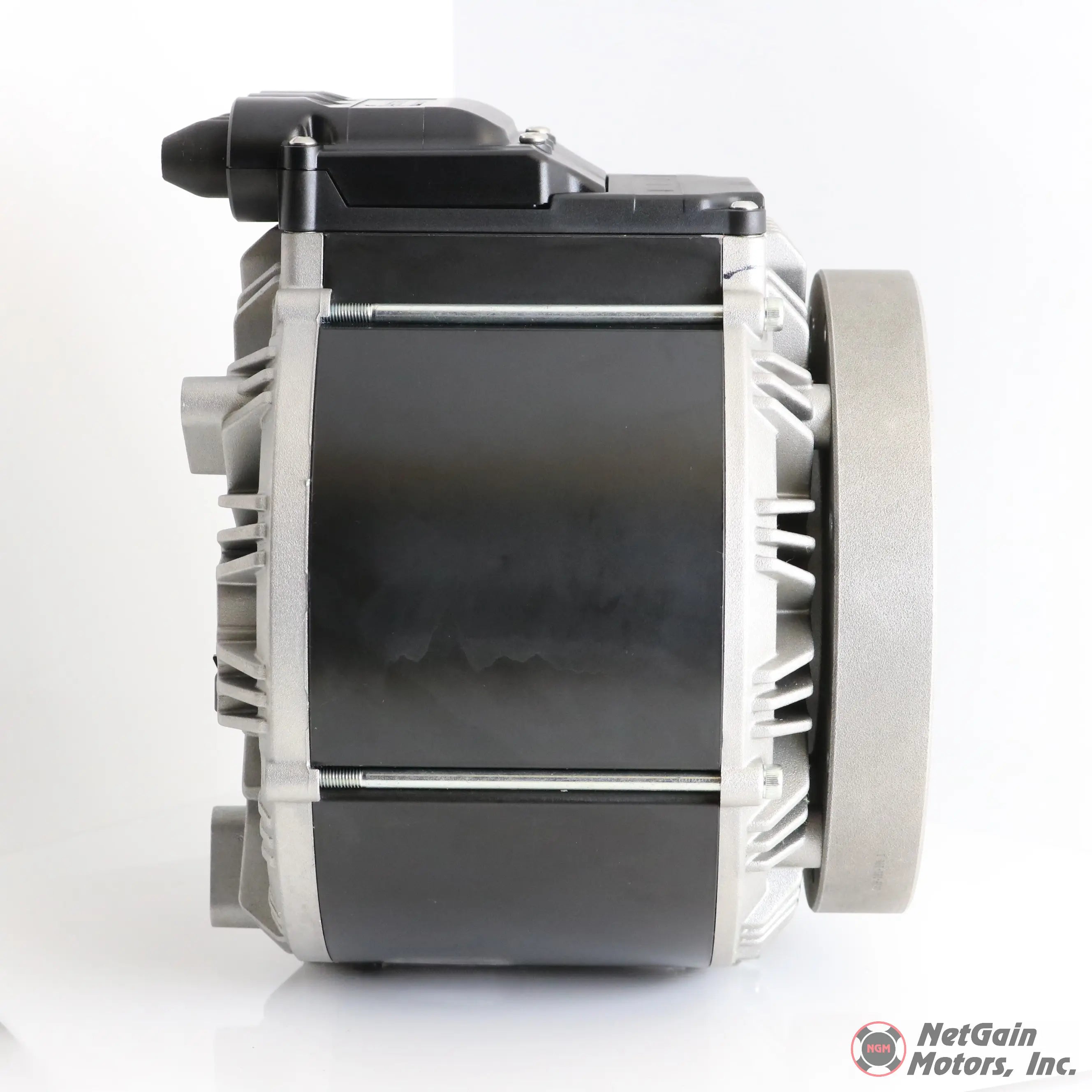

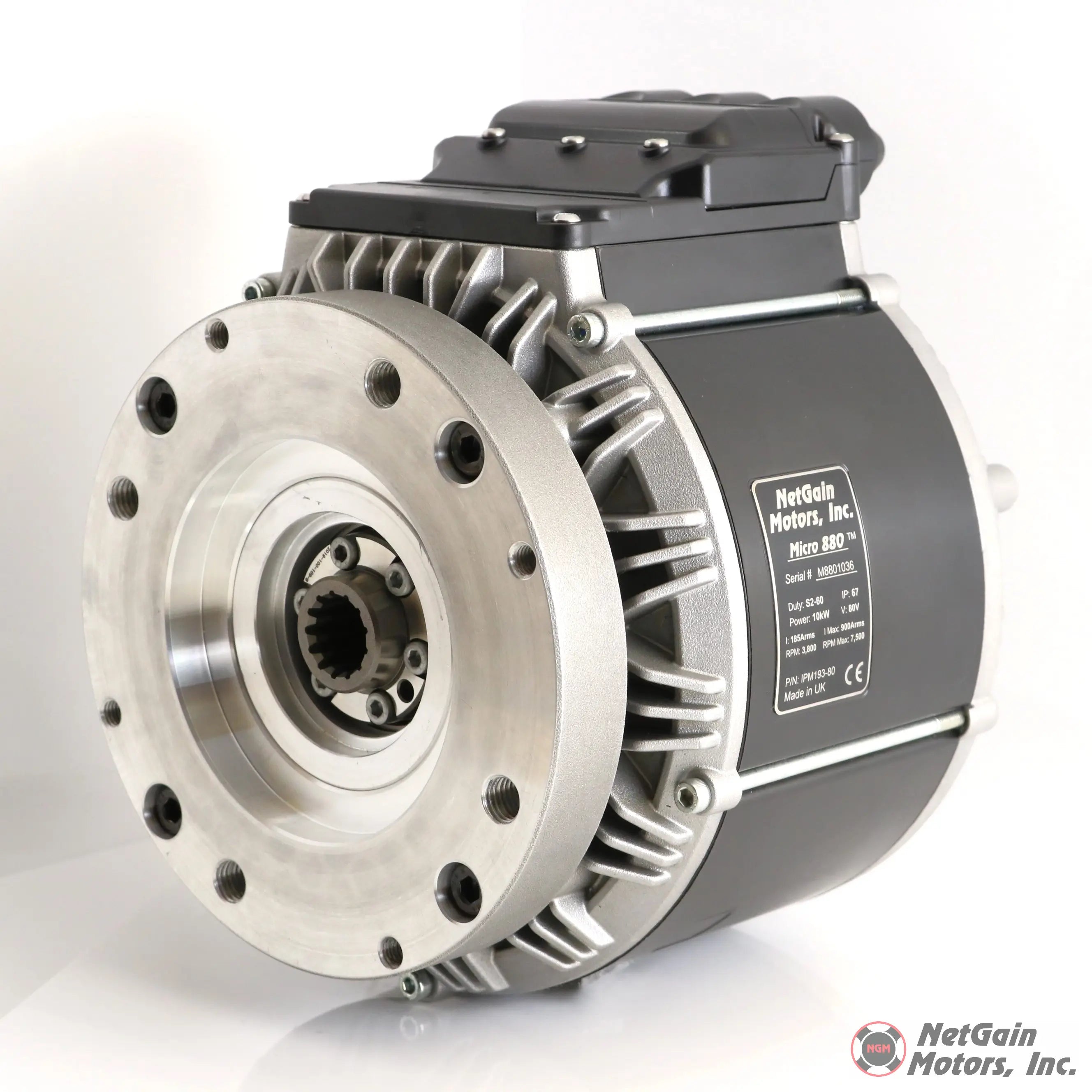

IPM Single Shaft Motor - 13T Spline Drive End Shaft, SAE-B Pump Adapter Plate, 10kW continuous. Wound for optimal performance with 80V input. |
| Micro 884 |
IPM Single Shaft Motor - 19mm keyed Drive End Shaft, 6mm keyway, 10kW continuous. Wound for optimal performance with 80V input. |
| Micro 885 |
IPM Single Shaft Motor - 9T Spline Drive End Shaft, SAE-A Pump Adapter Plate, 10kW continuous. Wound for optimal performance with 80V input. |
| Micro 886 |
IPM Single Shaft Motor - 19T Spline Drive End Shaft, E-Axle H12/24E/30E Adapter plate, 10kW continuous. Wound for optimal performance with 80V input. |
Key Features & Benefits
✅ Compact Design – Fits where larger motors can’t
✅ Up to 88 kW Peak Power – Serious torque in a small footprint
✅ High Efficiency – Less heat, more range, extended performance
✅ Lightweight Build – Ideal for weight-sensitive EV applications
✅ Brushless AC Technology – Smooth, quiet, and maintenance-free
✅ Scalable Voltage – Optimized for 48V–144V system architectures
✅ Versatile Mounting Options – Easy integration into custom chassis
Technical Specifications
|
Attribute |
Value |
|---|---|
|
Motor Type |
Brushless AC (BLDC) |
|
Peak Power |
88 kW |
|
Continuous Power |
Configurable |
|
Voltage Range |
48V–144V |
|
Cooling |
Air or optional liquid |
|
Mounting |
Custom-friendly, multiple configurations |
|
Weight |
~30 lbs (varies by config) |
Compatible Systems & Accessories
Pair the Micro 880 with leading EV controllers such as the Curtis 1238 or Torque Trends gear reducers for optimal output. At EV Source, we’ll help you match components to avoid compatibility issues and maximize performance.
Why Order from EV Source?
-
✅ Expert EV Conversion Support
-
✅ U.S.-Based Inventory & Shipping
-
✅ Verified Motor + Controller Combos
-
✅ Professional, Fast Customer Service
-
✅ Trusted by EV Builders Nationwide
Have Questions?
Our technical sales team is here to help you choose the right motor for your application. Email us or use the chat below to get started.
Power Your Build with the NetGain Micro 880
Ready to electrify your project? Add the Micro 880 to your cart today and take your EV conversion to the next level.
Order Now from EV Source – Trusted EV Components Delivered Fast
