Cooling Kit - Performance

  • Sale
  • Regular price $735.00

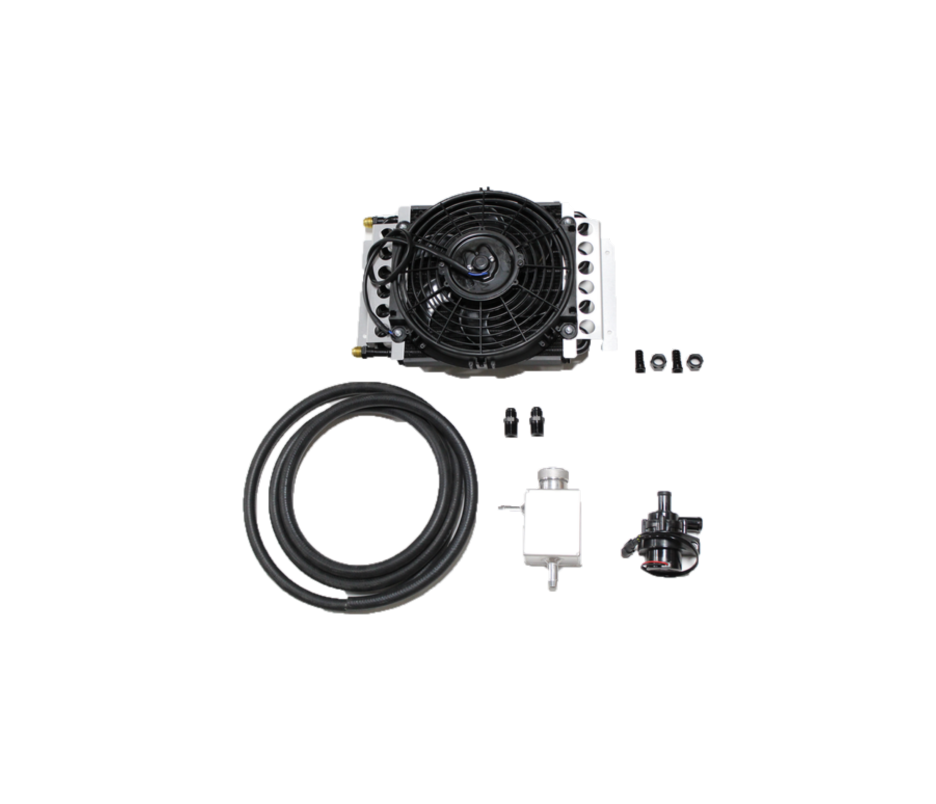

Included in the kit:

(1) 12V Electric Booster Pump
(1) Radiator
(1) Reservoir
(10) FT Heater Hose
(10) Hose Clamps
(2) 3/8" Fittings
(2) -8AN to 1/2 in. hose barb adapters

Description:

Designed for applications where ruggedness and powerful cooling requirements are essential, this kit has both a professional appearance and the highest performance possible. It utilizes -8 AN fittings and hose throughout for a guaranteed leak-free system. The radiator and fan assembly is extremely easy to mount and provides large amounts of air flow to keep your system running cool.

12V Electric Booster Pump

The pump is a ‘brushless’ 12 volt, high flow (23 litres / 6.08 gallons per minute), magnetically driven water pump. The motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required.

Technical Specifications:

 Motor 12V Brushless
Operating Voltage 9V to 15V DC
Max Current Draw 1.1 Amps
Pump Design  Recirculating * Centrifugal
Drive  Magnetic - No seals
Operating Temperature  -10F to +248F (-40C to +120C)
Burst Pressure  250Kpa (36PSI)
Flow Rate 23 L/min (6 gal/min)
Head Pumping Pressure

0.25 Bar/ 3.62 PSI

Weight

364g (0.8 lbs)

Self Priming

No

Max Head

2.2M


Radiator

This radiator combines a high-capacity oil cooler core with a Tornado 10 in. electric fan for maximum cooling in any environment. This superior combination will give you the peace of mind of knowing that your fluids will be at their prime operating temperatures. These coolers feature a core with 1/2 in. copper tubes and 3/4 in. aluminum fins with plastic edge-guard protectors, all with a durable black powder-coated finish. Each fan is solidly mounted to the cooler core with clear anodized billet aluminum brackets to ensure a stable attachment.

Technical Specifications:

 Overall Height:  11.5 in
Overall Width:  15.75 in
Overall Thickness:  5 in
Cooler Construction:  Tube and Fin
Cooler Material:  Copper/ Aluminium
Inlet Size:  -8 AN
Inlet Attachment:  Male threads
Outlet Size:  -8 AN
Outlet Attachment:  Male threads
Fan Included:  Yes
Fan CFM Range:  600-699
Maximum Fan CFM:  650 cfm
Fan Quantity:
Single
Fan Diameter (in): 10 in
Number of Cooling Rows:  16
Core Height:  10 in
Core Width:  12.375 in
Core Thickness:  1.75 in
Cooler Finish:  Black Painted
Quantity:  Sold as kit
