Electric Braking Kit

  • Sale
  • $302.00
  • Regular price $339.00


Originally ICE's braking is accomplished by vacuum generated through the combustion engine. For similar driving characteristics and safety after the engine is removed this vacuum must be supplied by another source. A switch automatically will turn on the pump when vacuum falls below the set value and turn it off when it reaches it's set pressure. Extremely quite, easy to install, and maintenance free. The VBS Braking Kit from Evolve Electrics provides the best all-in-one solution on the market.

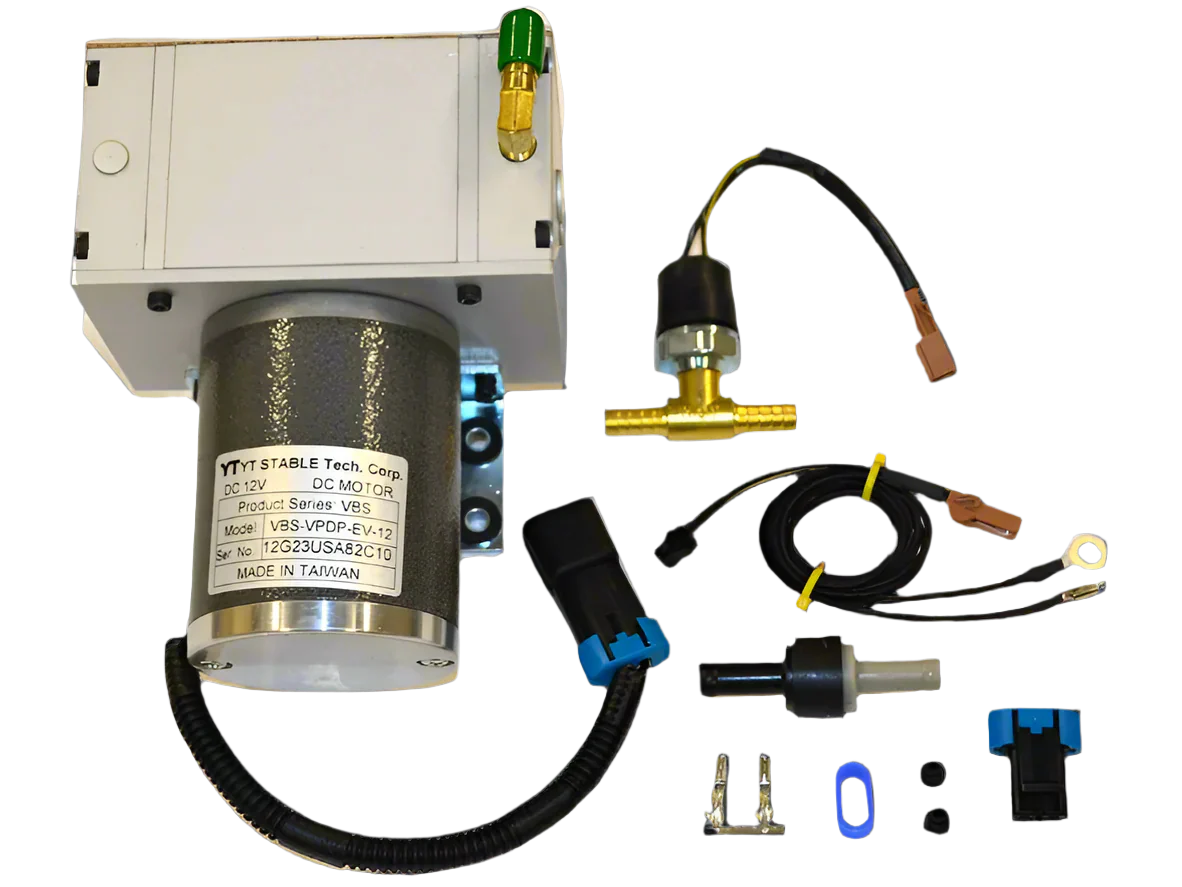

This kit includes ultra-quiet 12V electric vacuum pump, shut off switch, hoses, and mounting hardware.

**Reservoir Sold Separately.



Pump Specs:

  • Voltage: 12V
  • Current: 4A
  • Max. Vacuum: -600 mmHg (-0.8 bar)
  • from 0 to -600 mmHg: 6.5 s
  • from 0 to -450 mmHg: 3.2 s
  • from -300 mmHg to -450 mmHg: 1.5 s
  • Flow Rate: 51L/min
  • Dimension: 136x90x145 mm
  • Weight: 2.0 kg
  • Noise Level: < 50 dB
