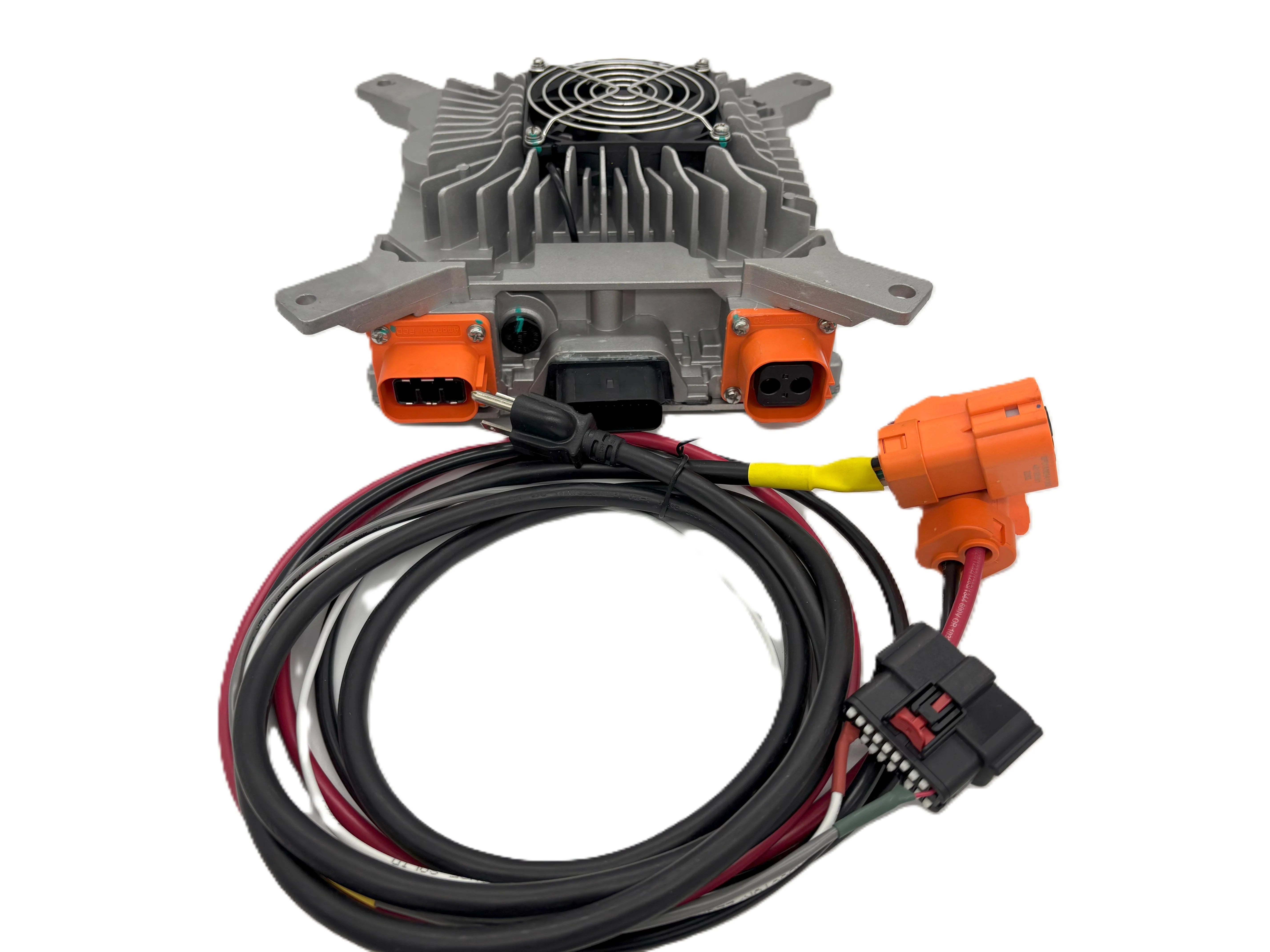

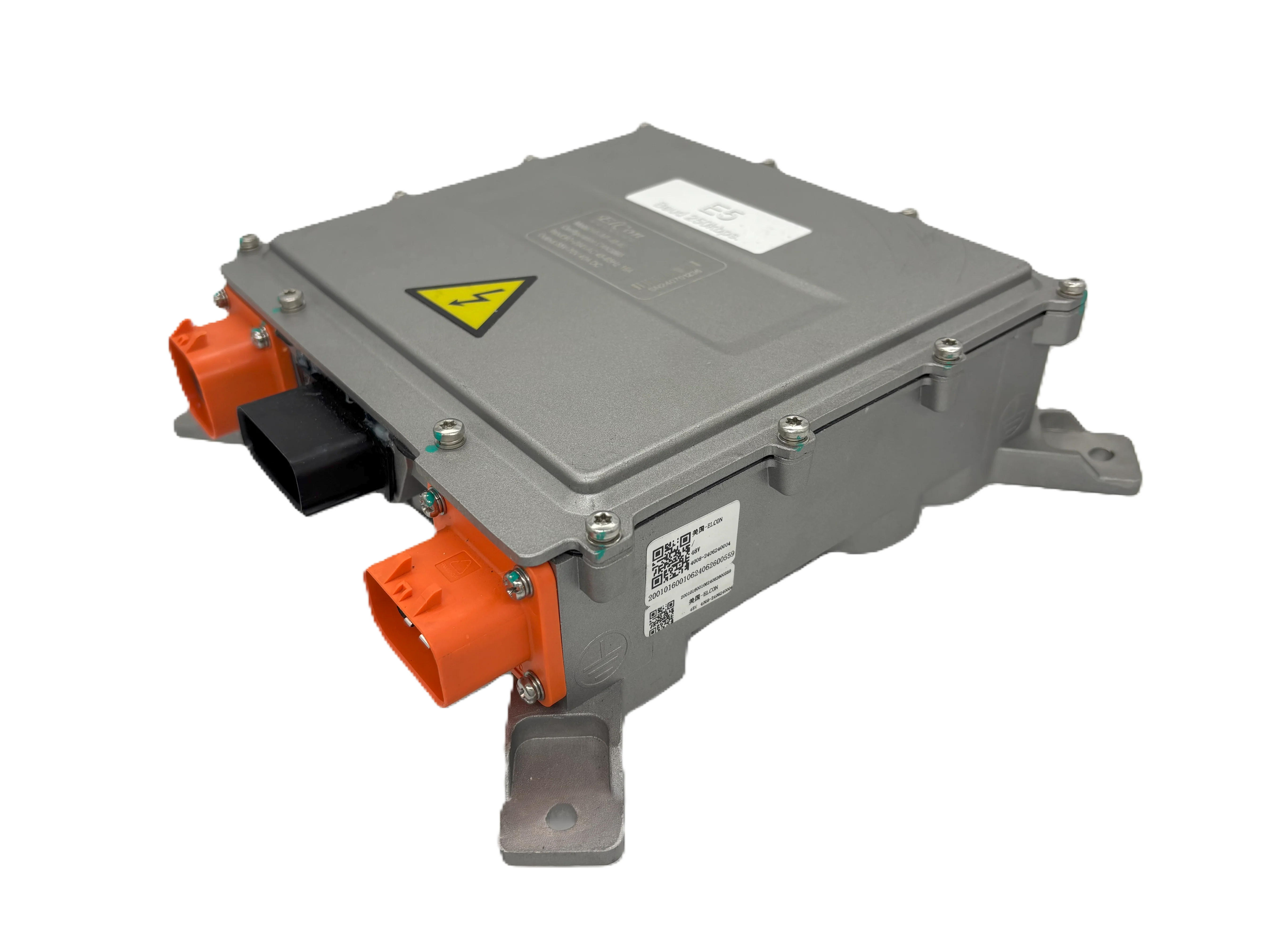

Elcon UHF 3.3kW CANbus Charger
Choose options
HK-J-H66-40 Manual
HK-J-H99-40 Manual
HK-J-H132-32 Manual
HK-J-H198-23 Manual
HK-J-H440-10 Manual
HK-J-H650-6 Manual
Description
Elcon UHF 3.3kW CANbus Charger – High-Efficiency Onboard Charging Solution
Overview:
The Elcon UHF 3.3kW CANbus Charger is a compact, high-efficiency onboard charger engineered for electric vehicles (EVs), hybrid systems, and energy storage applications. Built with cutting-edge power electronics and robust CANbus communication, this charger offers seamless integration, intelligent charging control, and industry-leading reliability.
Key Features:
-
High Efficiency & Power Density
Delivers up to 3.3kW of charging power with an impressive efficiency rate of over 93%, minimizing energy loss and heat generation. -
Advanced CANbus Communication
Supports intelligent BMS integration via CANbus protocol, enabling real-time monitoring, diagnostics, and adaptive charging strategies for optimal battery performance and safety. -
Wide Input & Output Range
Compatible with AC input voltages of 90V–264V and DC output from 12V–108V, making it suitable for a broad range of battery chemistries and configurations. -
Rugged & Compact Design
Enclosed in a sealed aluminum housing rated for IP67, the Elcon UHF 3.3kW charger is ideal for use in demanding environments, including automotive, marine, and industrial applications. -
Smart Thermal Management
Integrated active cooling system ensures stable operation across a wide temperature range, extending the lifespan of both the charger and the battery pack. -
Global Certifications
Designed to meet international safety and EMC standards, including CE, RoHS, and UL compliance, ensuring safe operation worldwide.
Applications:
-
Electric Vehicles (EVs)
-
Hybrid and Plug-in Hybrid Electric Vehicles (HEVs & PHEVs)
-
Industrial and Commercial Battery Charging Systems
-
Electric Motorcycles, Golf Carts, and Utility Vehicles
-
Energy Storage Systems (ESS)
Why Choose the Elcon UHF 3.3kW CANbus Charger?
With a reputation for durability, precision, and intelligent performance, the Elcon UHF series is trusted by OEMs and system integrators around the globe. The UHF 3.3kW CANbus Charger is the ideal solution for high-efficiency, programmable, and communication-capable charging in modern energy systems.
Main features
Full casting process, air-cooled or water-cooled, can work reliably under conditions -40- + 60 degrees.
Weight
8.9 lbs (3.9kg) without heatsink or fan.
Specifications
Models |
HK-J-H 99-40, 132-32, 198-23, 440-10 |
|
I N P U T |
Input Voltage |
AC 85~265V |
Frequency |
45-65Hz |
|
Input Current |
16A |
|
Power Factor |
≥0.99 at over half power |
|
Efficiency |
≥94% at full power |
|
Idle Power |
≤5W |
|
O U T P U T |
Output |
CV / CC |
Output Ranges |
25-99V, 33-132V, 50-198V, 110-440V |
|
Output current Limits |
Maximum 40A, 32A, 23A, 10A |
|
Output Power |
3300W @220vac or 1600W@110VAC |
|
Voltage Accuracy |
±1% |
|
Current Accuracy |
±2% |
|
Ripple voltage |
5% |
A U X.
O U T P U T |
|
12V Power Supply |
Output Voltage |
12.5V |
|
Current Rating |
5A |
|
Current Accuracy |
±2% |
|
Max. Current |
5.5A±0.5A |
|
Output Power |
≥62.5W |
|
Ripple Voltage |
1% |
P R O T E C T I O N
|
Input Overvoltage |
AC270±5V |
Input Under-voltage |
AC80±5V |
|
Output Overvoltage |
1% over max voltage limit stops output |
|
Output Under-voltage |
5% below minimum voltage stops output |
|
Output Overcurrent |
1% over max. output current stops output |
|
Over Temp. Protection |
85deg C starts reduced power, over 90deg stops output |
|
Short Circuit Protection |
Output stops |
|
Reverse battery protection |
Blown Fuse |
|
Ground Protection |
≤0.1milliohms |
|
CAN Com. Protection |
Communication failure stops output |
C O M |
CAN Communications |
CAN IDs E5, E7, E8 and E9 |
Baud Rate options |
500Kbps |
|
Terminating resistor |
Not included |
S A F E T Y |
Galvanic Isolation |
Input to output: 2000VAC≤10mA input to ground: 2000VAC≤10mA |
Insulation Rating |
Input to output, the signal end of the housing ≥10M Europe, the test voltage 1000VDC |
|
Electromagnetic Immunity |
Meet GB / T 18487.3-2001 11.3.1 Article |
|
Electromagnetic noise |
Meet GB / T 18487.3-2001 11.3.2 Article |
|
Harmonic Current |
Meet GB 17625.1-2003 6.7.1.1 Article |
|
Inrush Current |
≤6A |
|
Current Rise Time |
≤5S, overshoot ≤5% |
|
Stop response time |
100% to 10% ≤50mS, 100% to 0% ≤200mS |
|
Protection Class |
IP67 |
|
Vibration Resistance |
10-25Hz amplitude of 1.2mm, 25-500Hz 30m / s2, 8 hours a direction |
|
Noise |
≤60dB |
|
MTBF |
150000H |
|
Working Environment |
Relative humidity 5% -95% non-condensing |
|
Operating Temperature |
-40 ~ 60℃ |
|
Storage temperature |
-55℃~ +85℃ |
|
Over-temperature protection |
Stops when over 90deg C, resumes operating when cooled. |
