Description
-Supplies 12V/24V power to low-voltage applications in electric vehicles
-Output terminal can connect directly to 12V/24V backup battery pack
-Manages the charging process of backup battery automatically
-Fully Sealed Potting can be waterproof and dustproof
-Temperature and Vibration Resistance

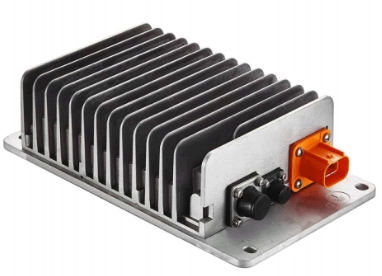

The 1000W IP67 Sealed DC-DC Converter can be connected in parallel, however, the output wires should be separate all the way to the battery or load, and be the same lengths. DO NOT join the 'big' output negative and positive together and then run a thick 2 AWG cable to the load. Instead, run two separate sets of smaller 6 AWG cables to the load, and the output currents should stay pretty close to equal.
Download Specifications Sheet Here
Download Measurements Here
Model List:
| Nominal Input | Nominal Output | Model | Configurations | Cooling Method |
| 72V | 14.0V | TDC-IY-72-12 | CANxxxx/N | Passive Cooling |
| 96V/ 108 | 14.0V | TDC-IY-108-12 | CANxxxx/N | Passive Cooling |
| 144V | 14.0V | TDC-IY-144-12 | CANxxxx/N | Passive Cooling |
| 216V | 14.0V | TDC-IY-216-12 | CANxxxx/N | Passive Cooling |
| 320V | 14.0V | TDC-IY-320-12 | CANxxxx/N | Passive Cooling |
Technical Specifications (Input):
| Model | TDC-IY-72-12 | TDC-IY-108-12 | TDC-IY-144-12 | TDC-IY-216-12 | TDC-IY-320-12 |
| Nominal Voltage: | DC72V | DC108V/ DC96V | DC144V | DC216V | DC320V |
| Nominal Current: | 15A | 10A/ 11A | 7.5A | 5A | 3.5A |
| Max Current: | ≤25A | ≤18A | ≤12A | ≤8A | ≤6A |
| Input Voltage Range: | 44-97V | 74-162V | 103-227V | 135-290V | 200-454 |
|
Input Low Voltage Protection Value |
42V±2V | 70V±2V | 96V±4V | 165V±5V | 215V±5V |
|
Input Over Voltage Protection Value |
100±3V | 162±4V | 215±5V | 305±5V | 455±5V |
|
Start-Up Time |
≈0.5S @ VIN=72V |
≈0.5S @ VIN=108V |
≈0.5S @ VIN=144V |
≈0.5S @ VIN=216V |
≈0.5S @ |
