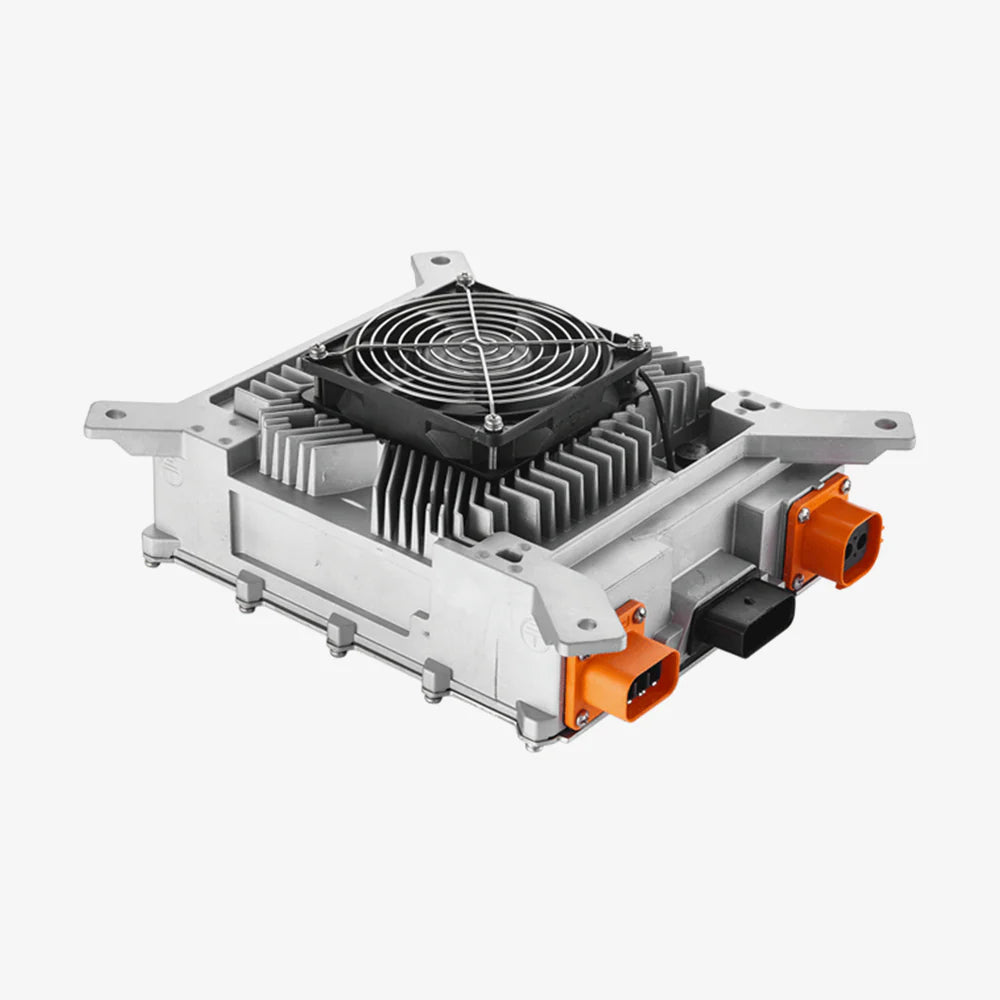

Elcon UHF 6.6kW CANbus Charger
Elcon UHF 6.6kW CANbus Charger

Elcon

Elcon UHF 6.6kW CANbus Charger

Sale price$1,835.00
Model:HK-J-H66-80 (18-66VDC output)
Quantity:

Elcon UHF 6.6kW CANbus Programmable Charger – Precision Charging for Advanced EV Systems

High Power. Smart Control. Proven Performance.

The Elcon UHF 6.6kW CANbus Charger is a fully programmable, liquid-cooled on-board charger designed for high-voltage lithium battery systems in EV conversions, commercial EVs, industrial electric platforms, and stationary storage applications. Engineered by TC Charger (Elcon)—a global leader in electric vehicle power systems—this UHF series charger delivers exceptional reliability, fast charge times, and full CANbus integration, giving you total control over your charging parameters.

Whether you're charging a 72V forklift, a 144V EV battery, or a 400V energy storage array, the Elcon UHF 6.6kW charger offers versatile input/output configurations, precise charge curve management, and robust environmental protection—all in a compact, liquid-cooled design.


⚡ Key Features:

  • Max Power Output: 6600W (6.6kW)

  • Input Voltage: 85–265VAC (Single Phase, Global Compatibility)

  • Output Voltage Range Options:

    • 72–108VDC

    • 108–180VDC

    • 180–260VDC

    • 260–420VDC

    • Custom voltage ranges available upon request

  • Output Current: Up to 22A (varies by model/output voltage)

  • CANbus Communication: Fully programmable for charging profiles, safety logic, BMS interfacing, and real-time monitoring

  • Liquid-Cooled: Efficient thermal management for continuous operation in enclosed or high-heat environments

  • Charging Curves: Customizable for lithium (LFP, NMC, etc.), lead-acid, or other chemistries

  • Efficiency: >93% typical

  • Protection Features:

    • Over-voltage / under-voltage

    • Over-temperature

    • Short circuit

    • Reverse polarity

    • CANbus fault detection


🧩 Integration Ready:

  • Compatible with Orion BMS, Dilithium, Thunderstruck, Tesla BMS, and other CAN-enabled platforms

  • Programmable charge termination logic, voltage ramping, current limits, and fault response behavior

  • Easily paired with external relays, contactors, and charge ports


🔩 Technical Specs:

  • Cooling: Liquid cooled (3/8” barbed fittings)

  • Weight: ~18 lbs (8.2 kg)

  • Dimensions: Approx. 11.2" × 8.5" × 3.7"

  • IP Rating: IP66 Sealed Enclosure

  • Standby Power Draw: <5W

  • Mounting Orientation: Horizontal or vertical allowed (coolant ports must remain upright)


🛠️ Ideal For:

  • EV Conversions (cars, trucks, motorcycles, and buses)

  • Off-Highway Electric Equipment & UTVs

  • Battery Charging Stations & Mobile Charging Carts

  • Marine EV & Hybrid Applications

  • Industrial Material Handling Vehicles (AGVs, forklifts, etc.)


✅ Why Choose the Elcon UHF 6.6kW Charger?

  • Proven performance with OEM-grade reliability

  • Direct CAN control for smarter BMS interactions

  • Fully programmable charge curves via EVSource support

  • Liquid cooling ensures maximum performance under load

  • Compact and rugged for tight-space or off-road builds


🧰 Available Add-Ons:

  • CAN Harness Kits – Pre-terminated cables for Orion, Thunderstruck, etc.

  • AC Input & DC Output Cable Assemblies

  • Liquid Cooling Loops & Pumps

  • Preprogramming Services – Set up for your specific battery chemistry & pack voltage

  • Mounting Brackets & Vibration-Isolation Kits


🌎 Global Charging Made Easy.

With universal AC input, advanced thermal design, and true CANbus programmability, the Elcon UHF 6.6kW Charger is the go-to solution for builders who demand safe, efficient, and intelligent charging—from the shop floor to the open road.

Elcon UHF 6.6kW CANbus Charger Manual

6.6KW UHF chargers are available in the following models.  The first number is the maximum voltage and the second number is the maximum current.

HK-J-H66-80 provides 18-66VDC output

HK-J-H99-80 provides 25-99VDC output

HK-J-H132-64 provides 34-132VDC output

HK-J-H198-46 provides 50-198VDC output

HK-J-H440-20 provides 110-440VDC output

HK-J-H650-12 provides 170-650VDC output

Essential Parameter:

 Input Current DC Output Voltage Range  Max Output Current Power Factor  Full Load Efficiency
48V80A  18-68VDC 80A

0.99

93%
72V80A  50-198VDC  80A

0.99

93%
96V64A  34-132VDC  64A

0.99

93%
144V46A  50-198VDC 46A

0.99

93%


Features:

Input:

 Items  Data
AC Input Range  AC 90-265V
Frequency  45-65Hz
Input Current  32A
Power Factor  0.99 Half loading
Efficiency 93% Full loading
Standby Consumption 10W


Main Output:

 Items  Data
Output Mode  CV/  CC
Output Voltage  6600W @ 220VAC; 3300W @ 220VAC
CV Accuracy  +/- 1%
CC Accuracy +/- 2%
Ripple Voltage Coefficient 5%


Low Voltage Output:

 Output Mode CV
Output Voltage 13.8V/ 27.6V
CV Accuracy  +/- 1%
CC Accuracy  +/- 2%
Ripple Voltage Coefficient 5%


CAN Communications:

 CAN Communication  Optional
Baud Rate  500Kbps
Terminal Resistance  NO


Protection Feature:

 Input Over-Voltage Protection AC285+/-5V
Input Under Voltage Protection AC85+/-5V
Output Over-Voltage Protection  Stop the output when exceeds + 1% of the maximum output voltage
Output Under-Voltage Protection Stop the output when below -5% of the minimum output voltage
Output Over-Current Protection Stop the output when exceeds + 1% of the maximum output current
Over-Temperature Protection  Power down from 85°C and shut off at 90C
Short-circuit Protection Stop Output
Battery Reverse Connect Protection  Fuse Burned-out
Ground Protection 100
CAN communication Protection Automatically stop the output when CAN communication fails
Power-off Protection YES


Safety and others:

 Withstand Voltage

Input to Output: 2000VAC≤10mA

Input to Ground: 2000VAC≤12mA

Output to Ground: 2000VAC≤10mA, all 1 min

Insulation Resistance

Input, Output, signal terminal to casing≥10mΩ

Testing Voltage 1000VDC

Electromagnetic Immunity

GB/T 18487 3-2001 11.3.1

Electromagnetic Abusive

GB/T 18487 3-2001 11.3.2

Harmonic Current

GB 17625 1-2003 6.7.1.1

Inrush Starting Current

≤24A

Current-rise Time

≤5S, Overshoot ≤5%

Close response Time

100% 10%≤50mS, 100% 0%≤200mS

Anti-Vibration

10-25Hz Amplitude 1.2mm, 25-500Hz 30ms2, 8hrs per direction

Noise

≤60dB(A)

MTBF

150000H

Work Environment

Relative Temp 5%-95% No condensation

Working Temperature

-35°C - +85°C

Storage Temperature

-55°C - +100°C
